High Pressure Dirty Water Electric Centrifugal Submersible Pumps For Factory

WQ Centrifugal Pump Product introduction

QW (WQ) submersible non clogging sewage pump is characterized by remarkable energy saving effect, anti winding, non clogging, automatic installation and automatic control. It has a unique effect in discharging solid particles and long fiber waste. The series of submersible non clogging sewage pump adopts a unique impeller structure and a new type of mechanical seal, which can effectively transport solids and long fibers. Compared with the traditional impeller, the impeller of the pump adopts the form of single channel or double channel, which is similar to a bend with the same cross-section size, and has very good over-flow performance. With a reasonable volute chamber, the pump has high efficiency, the impeller has dynamic and static balance test, and the pump has no vibration in operation.

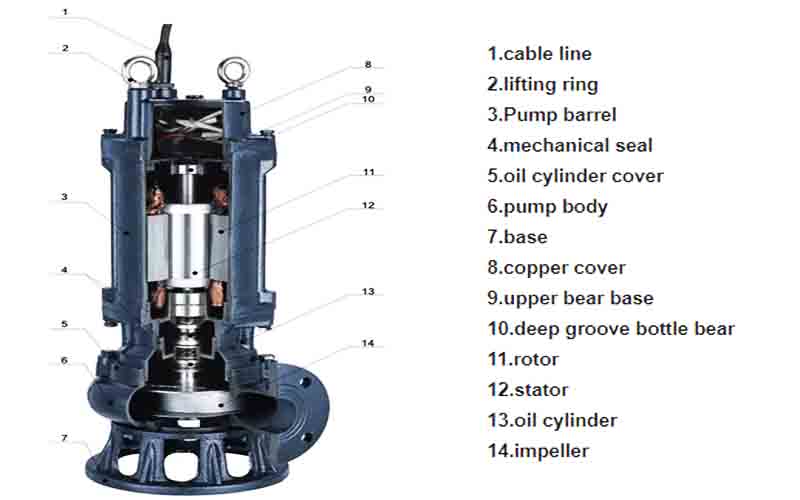

WQ Pump Assembly Drawing

Product Paramenters

NO.	Type	Caliber	Flow	Head	Power	speed
		mm (in)	m³/h (cu yd)	m (yd)	kw (hp)	r/min
1	QW25-8-15-1.1	25 (0.9)	8 (10.4)	15 (16.4)	1.1 (1.4)	2825
2	QW32-12-15-1.1	32 (1.2)	12 (15.6)
3	QW40-15-15-1.5	40 (1.5)	15 (19.6)		1.5 (2.0)	2840
4	QW40-15-30-2.2			30 (32.8)	2.2 (2.9)
5	QW50-20-7-0.75	50 (1.9)	20 (26.1)	7 (7.6)	0.7 (1.0)	1390
6	QW50-10-10-0.75		10 (13.0)	10 (10.9)
7	QW50-20-15-1.5		20 (26.1)	15 (16.4)	1.5 (2.0)	2840
8	QW50-15-25-2.2		15 (19.6)	25 (27.3)	2.2 (2.9)
9	QW50-18-30-3		18 (23.5)	30 (32.8)	3 (4.0)	2900
10	QW50-25-32-5.5		25 (32.6)	32 (34.9)	5.5 (7.3)
11	QW50-20-40-7.5		20 (26.1)	40 (43.7)	7.5 (10.0)	2840
12	QW65-25-15-2.2	65 (2.5)	25 (32.5)	15 (16.4)	2.2 (2.9)	2880
13	QW65-37-13-3		37 (48.3)	13 (14.2)	3 (4.0)	2890
14	QW65-25-30-4		25 (32.5)	30 (32.8)	4 (5.3)	2890
15	QW65-30-40-7.5		30 (39.2)	40 (43.7)	7.5 (10.0)	2930
16	QW65-35-50-11		35 (45.7)	50 (54.6)	11 (14.7)
17	QW65-35-60-15			60 (65.6)	15 (20.1)	2930
18	QW80-40-7-2.2	80 (3.1)	40 (52.3)	7 (7.6)	2.2 (2.9)	1420
19	QW80-43-13-3		43 (56.2)	13 (14.2)	3 (4.0)	2880
20	QW80-40-15-4		40 (52.3)	15 (16.4)	4 (5.3)	2890
21	QW80-65-25-7.5		65 (85)	25 (27.3)	7.5 (10.0)	2900
22	QW100-80-10-4	100 (3.9)	80 (104.6)	10 (10.9)	4 (5.3)	1440
23	QW100-110-10-5.5		110 (143.8)		5.5 (7.3)
24	QW100-100-15-7.5		100 (130.7)	15 (16.4)	7.5 (10.0)
25	QW100-85-20-7.5		85 (111.1)	20 (21.8)

WQ Sewage Pump Application

1. Municipal Engineering and construction site

2. Sewerage in residential areas

3. Sewage discharge from hospitals, hotels, etc

4. Drainage system of urban sewage treatment plant

5. Water supply device of water plant and drainage station of civil air defense system

6. Discharge of sewage seriously polluted by factories and businesses

FAQ

1: Are you a trading company or a manufacturer?

A: We are a factory with more than 15 years of production experience.

2: What is the minimum order quantity?

A:1 sets.

3: Where is your final loading port?

A: Tianjin port and Shanghai port.

4: Have your goods been inspected before delivery?

A: Yes, we have 100% tests before delivery or shipment.
