    Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : 50WQ20-7-0.75
    Certification : ISO9001 CE
    Price : 1000 USD/SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 SET/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Cast Iron IP68 Non Clog Sewage Pump WQ Submersible Drainage Pump

    Non-Clog Sewage Pump Sewage Submersible Pump Household Sewage Pump

    WQD, WQ series submersible sewage pump is a new product adopting foreign advanced technology. Single/double channel(s) impeller. Mechanical seal is on both ends. Hard anti-corrosive tungsten carbine or titanium alloy materials are used as seal.

    Sewage Submersible Non-clog Water Pump Specification
    Product name
    WQD/WQ Series Sewage Submersible Pump
    Model
    50JYWQ15-30-1200-3
    Pressure
    High Pressure
    Voltage
    220/380V
    Application Fields
    1. Wastewater discharge from factories, shopping malls, hospitals, hotels
    2. Domestic sewage, rainwater discharge in residential
    areas, parking lots, municipal works
    3. Wastewater treatment plant, sewage discharge from livestock farms
    4. Mud water and gray
    water pumping on construction sites and mines
    5. Water pumping for agriculture and aquaculture
    6. Methane pools and field irigation in countryside
    Pump
    Max immersion depth: 5 m
    Max. liquid temperature: +40'C
    Liquid PH value: 6-10
    Max. liquid density: 1.2x10kg/m3
    Motor
    Copper winding
    Insulation cass: F
    Protection class: IP68

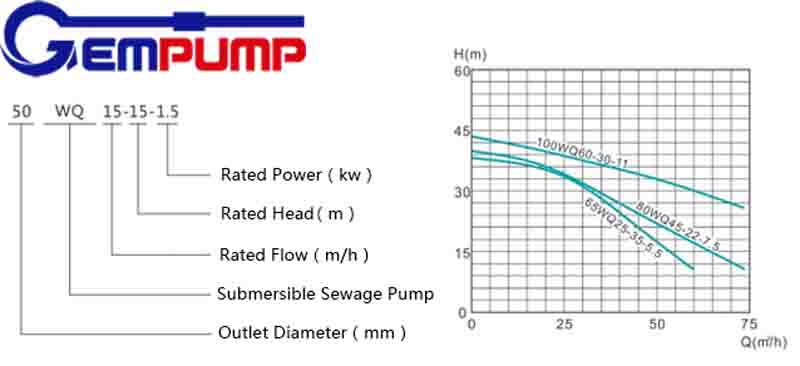

    Sewage Submersible Pump Model

    Pump Model
    Capacity
    (m3/hour)
    Head(meter)
    Power(KW)
    Voltage(V)
    Discharge DN(mm)
    WQ10-10-0.75
    10
    10
    0.75
    220/380
    50
    WQ7-15-1.1
    7
    15
    1.1
    220/380
    50
    WQ15-7-1.1
    15
    7
    1.1
    220/380
    65
    WQ12-15-1.5
    12
    15
    1.5
    380
    50
    WQ25-7-1.5
    25
    7
    1.5
    380
    65
    WQ9-22-2.2
    9
    22
    2.2
    380
    50
    WQ25-10-2.2
    25
    10
    2.2
    380
    65
    WQ40-10-2.2
    40
    10
    2.2
    380
    80
    WQ50-7-2.2
    50
    7
    2.2
    380
    100
    WQ15-30-3
    15
    30
    3
    380
    50
    WQ25-15-3
    25
    15
    3
    380
    65
    WQ37-13-3
    37
    13
    3
    380
    80
    WQ60-9-3
    60
    9
    3
    380
    100
    WQ15-32-4
    15
    32
    4
    380
    50
    WQ25-20-4
    25
    20
    4
    380
    65
    WQ30-36-4
    30
    36
    4
    380
    80
    WQ40-15-4
    40
    15
    4
    380
    80
    WQ60-10-4
    60
    10
    4
    380
    100
    WQ15-40-5.5
    15
    40
    5.5
    380
    50
    WQ25-35-5.5
    25
    35
    5.5
    380
    65
    WQ30-30-5.5
    30
    30
    5.5
    380
    80
    WQ65-15-5.5
    65
    15
    5.5
    380
    100
    WQ100-7-5.5
    100
    7
    5.5
    380
    150
    WQ45-22-7.5
    45
    22
    7.5
    380
    80
    WQ80-15-7.5
    80
    15
    7.5
    380
    100
    WQ100-10-7.5
    100
    10
    7.5
    380
    150

    FAQ

    Q: What is the payment terms?

    A: 30% T/T in advance, 70% before shipment, L/C at sight .

    Q: What is your delivery time?

    A: Within20 days after receiving deposit.

    Q: What is your MOQ of this item ?

    A: 1 PC per item.

    Q: Can we type our brand on it?

    A: Yes of course,OEM.

    Q: Where is your loading port ?

    A: Tianjin Port, Shanghai Port,China.
