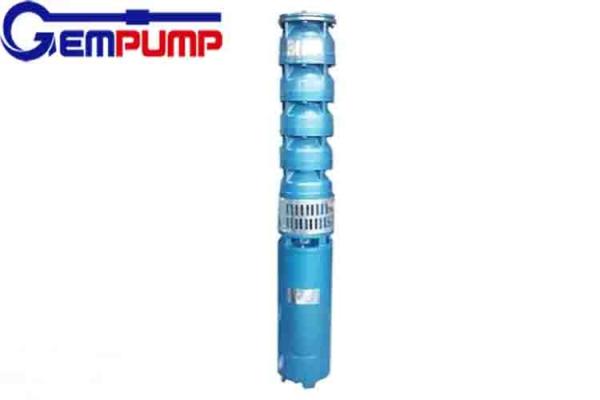

250QJ Industrial Centrifugal Pumps 2850rpm Multi Stage Submersible Pump

Ask Lasest Price
Brand Name :	Gempump
Model Number :	250QJ90-18
Certification :	ISO9001,CE,SGS
Price :	500USD/Set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000 Sets per month
Delivery Time :	3-5 working days

Add to Cart

Product Details
Company Profile

250QJ Industrial Centrifugal Pumps 2850rpm Multi Stage Submersible Pump

Clear Water Deep Well Submersible Borehole Turbine Industrial Centrifugal Pumps

Submersible Borehole Industrial Centrifugal Pump Introduction
QLJ series submersible deep well pumps consist of motor and pump assembly, the struture is reasonable, easy to install and maintain, and with advanced hydraulic model, they adopting the core prodcued with the resin sand and the vane runners adopting the core technique that topcoated with epoxy, high efficiency which is 2-5% higher than that of QJ type submersibie turbine pump as well. They are modern machine for lifting water.

Vertical Deep Well Submersible Borehole Centrifugal Pump Basic Parameters

Type	Capacity	Head			Stage	Rotating Speed	Motor Power	Effi	Dia
Type	m³/h	m			i	r/min	kw	%	mm
150QLJ12-8.5	10 12 16	33	25.5	22.5	3	2850	3	65	143
		40	34	30	4		3
		48	42.5	37.5	5		3
		54	51	45	6		4
		63	59.5	52.5	7		4
		72	68	60	8		5.5
		81	76.5	67.5	9		5.5
		90	85	75	10		5.5
		99	93.5	82.5	11		7.5
		108	102	90	12		7.5
		117	110.5	97.5	13		7.5
		126	119	105	14		7.5
		135	127.5	112.5	15		9.2
		144	136	120	16		9.2
		153	144.5	127	17		9.2
150QLJ20-8.5	15 20 29	38	34	23	4	2850	4	70	143
		48	42.5	29	5		4
		58	51	35	6		5.5
		67	59.5	41	7		5.5
		77	68	47	8		7.5
		87	76.5	53	9		7.5
		96.5	85	58.5	10		9.2
		106	93.5	64	11		9.2
		116	102	70	12		11
		125.5	110.5	76	13		11
		135	119	82	14		11
		145	127.5	88	15		13
		155	136	94	16		13
		164	144.5	100	17		15
150QLJ30-9	25 30 35	30	27	22.5	3	2850	4	71	143
		40	36	30	4		5.5
		50	45	37.5	5		7.5
		60	54	45	6		7.5
		70	63	52.5	7		9.2
		80	72	60	8		11
		90	81	67.5	9		11
		100	90	75	10		13
		110	99	82.5	11		15
		120	108	90	12		15
150QLJ45-8	35 45 52.5	27.9	24	21	3	2850	5.5	73	143
		37.2	32	28	4		7.5
		46.5	40	35	5		7.5
		55.8	48	42	6		9.2
		65.1	56	49	7		11
		74.4	64	56	8		13
		83.7	72	63	9		15
		93	80	70	10		15
175QLJ20-11	15 20 24	48	44	39	4	2850	4	70	168
		60	55	49	5		5.5
		72	66	58.6	6		5.5
		84	77	68	7		7.5
		96	88	78	8		7.5
		108	99	88	9		9.2
		120	110	97.7	10		9.2
		132	121	108	11		11
		144	132	117.3	12		11
		156	143	127	13		13
		168	154	137	14		13
		180	165	147	15		15
175QLJ30-12	21 30 36	43	36	30	3	2850	5.5	74	168
		58	48	40	4		7.5
		72.5	60	50	5		9.2
		87	72	61	6		11
		101	84	71	7		11
		116	96	80	8		13
		130	108	90	9		15
		145	120	100	10		18.5
		159	132	110	11		18.5
		174	145	120	12		22
		188	156	130	13		22
175QLJ40-12	30 40 46	38	36	32	3	2850	7.5	75	168
		51	48	43	4		9.2
		64	60	54	5		11
		77	72	65	6		13
		90	84	76	7		15
		102	96	86	8		18.5
		114	108	96	9		22
		127	120	107	10		22
225QLJ60-18	42 60 72	20.5	18	15	1	2880	5.5	75	220
		41	36	30	2		9.2
		61.5	54	45	3		13
		82	72	60	4		18.5
		102.5	90	75	5		22
		123	108	90	6		30
		143.5	126	105	7		30
		164	144	120	8		37
225QLJ100-12.5	75 100 120	33	25	18	2	2880	11	75	220
		49	37.5	27	3		15
		65	50	36	4		22
		82	62.5	45	5		30
		98	75	54	6		30
		114	87.5	63	7		37
		130	100	72	8		45
225QLJ130-13.5	92 130 140	33	27	26	2	2880	15	75	220
		49	40.5	39	3		22
		65	54	52	4		30
		82	67.5	65	5		37
		98	81	78	6		45
250QLJ90-18	67 90 118	41	36	26	2	2880	15	75	220
		62	54	39	3		22
		83	72	52	4		30
		104	90	65	5		37
		125	108	78	6		45
250QLJ125-16	89 125 142	39	32	26	2	2880	18.5	76	220
		58	48	39	3		30
		78	64	52	4		37
		98	80	66	5		45
300QLJ120-28	84 120 144	32.8	28	23	1	2900	13	76	250
		65.6	56	46	2		30
		98.4	84	69	3		45
		131.2	112	92	4		55
		164	140	115	5		75
300QLJ170-34	119 170 204	38	34	29	1	2900	30	76	250
		76	68	58	2		55
		114	102	87	3		75
		152	136	116	4		100
300QLJ200-24	130 200 245	31	24	18.5	1	2900	18.5	76	250
		62	48	37	2		37
		93	72	55.5	3		55
		124	96	74	4		75
		155	120	92.5	5		100
300QLJ250-22	165 250 280	29	22	18.5	1	2900	22	75	250
		58	44	37	2		45
		87	66	55.5	3		75
		116	88	74	4		90
		145	110	92	5		125
350QLJ250-46	200 250 330	52	46	33	1	2900	55	80	330
		104	92	66	2		100
		156	138	99	3		140
		208	184	132	4		185
350QLJ290-50	220 290 360	56	50	41	1	2900	63	80	330
		112	100	82	2		120
		168	150	123	3		185
350QLJ320-53	245 320 400	59.5	53	44	1	2900	75	80	330
		119	106	88	2		140
		178	159	132	3		220
350QLJ370-47	258 370 466	53	47	37	1	2900	75	80	330
		106	94	74	2		140
		159	141	111	3		220
350QLJ450-50	305 450 524	57	50	43	1	2900	90	80	330
		114	100	86	2		180

450QLJ500-63	343 500 694	76	63	43	1	2900	140	78	400
		152	126	86	2		280

450QLJ800-24	400 800 1000	27	24	20	1	2900	75	80	430
		54	48	40	2		150
		81	72	60	3		250
500QLJ550-27	400 550 850	29	27	17.5	1	1475	63	81	480
		58	54	35	2		110
		87	81	52.5	3		180
		116	108	70	4		250
550QLJ900-30	600 900 1100	34	30	24	1	1475	110	82	530
		68	60	48	2		220

Submersible Pump Applications:
1. Ground water pumping
2. Farm irrigation system
3. Sea water, shipyard, offshore, floating dock, salt water, vessel, river, lake, reservoir
4. Drawing clean water from well/borehole

Gempump is a competitive reputable OEM&ODM submersible pump manufacturer

1. 3 types main casting technique: EPC Process (Expendable pattern casting); Precoated sand casting; Wax precision casting.
2. Fully automated pressing stamping And punching lines with ultimate levels of quality. Production and assembly departments based on German engineering. Be spoke CNC machining department utilizing 3D/2D technology and high precision tools; Professional test stations. R&D department for our continuous drive for perfection of products.
3. We have 36 sole duty quality control staffs. Among processional staffs are put in charge of Rotor dynamic balancing/Impeller static balance /Motor winding withstand voltage test /Hydrostatic pressure test of pressure bearing parts.
