    SS316 SS304 Industrial Centrifugal Pumps 75kw Hydraulic Oil Submersible Pump

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : 200QJ20-135/10
    Certification : ISO9001
    Price : 500USD/Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Sets per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    SS316 SS304 Industrial Centrifugal Pumps 75kw Hydraulic Oil Submersible Pump

    Centrifugal submersible hydraulic water spare parts with motor pump price

    Specification
    Min.well diameter
    150-500mm
    Capacity Q
    5-900m3/h
    Head H
    13-600m
    Power P
    3-250KW
    Motor
    Brand optional,100% Copper Wire
    Voltage
    380V/415V/660V/1140V
    Material
    Cast Iron/SS316/SS304/Copper,Can be customized
    Scope of supply
    Pump,Motor,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories
    Certification
    ISO 9001
    Warranty
    One Year/According to customer requirements
    If you have any questions, please send me an inquiry, we will choose the model and quotation for you.

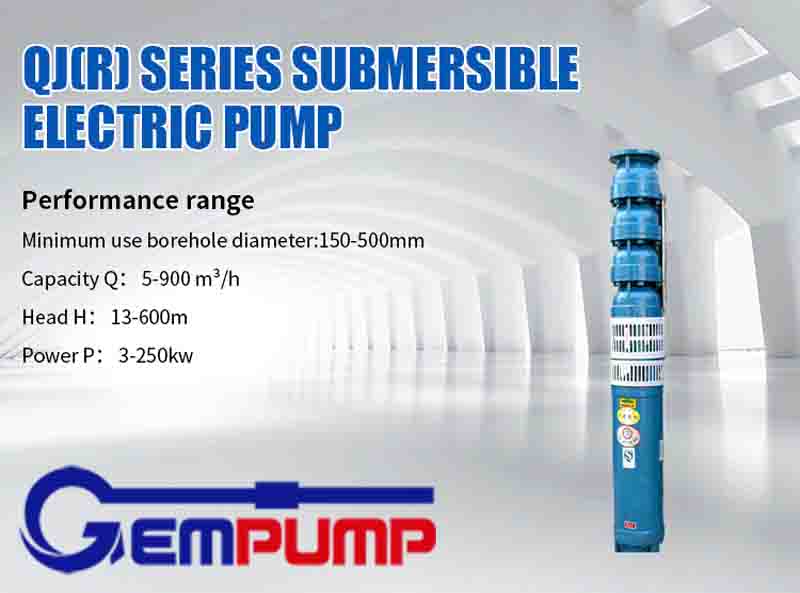

    The deep well pump is the host by the series QJ(R) well submersible pump and YQS submersible motor of underwater integrated work,it has a compact structure, small volume, low noise, no secondary pollution, installation & use convenient maintenance, safe and reliable operation, high efficiency and energy saving, no need to build the pump room and so on. It can vertical and horizontal installation. It can also be used for open water and as a ground pump. Compared with other ground water pumps, it has the advantages of small footprint, no pollution and leakage, convenient use and installation, etc. It can be used for water supply and other occasions. It is the traditional ISG, DL centrifugal pump ideal alternative pumping, drainage tools.
    The QJ(R) submersible pump is an energy-saving product designed according to national standards.It is mainly used to pump groundwater from deep wells, and is also widely used in farmland irrigation, water supply and drainage in cities, industrial and mining enterprises, water supply for human and animal water in highland and mountainous areas, and high-rise buildings.
    For example:150QJ(R)10-150 MOTOR:YQST250-75
    150- Adapt to the minimum diameter (mm) 150 YQS - Asynchronous submersible motor.
    QJ(R)- Well submersible pump (hot water) T - High thrust structure
    10-Capacity:10m³/h 250 - Min well diameter(mm)
    150-Head:150m 75 - Motor power(kw)
    Electric vertical submersible deep well centrifugal water pump
    1) The pump is centrifugal or mixed flow; the water lubricated bearing is adopted;connected with teh motor by rigid coupling.A non-return valve body is arranged at the upper end of the water pump to prevent the working parts from being damaged due to the backflow of water in the water pipe when the electric pump is stopped.
    2) The motor is a closed water-filled wet structure.The stator winding of the motor is made of water-resistant polyethylene insulated nylon sheathed multilayer electromagnetic wire.The motor is filled with clean water to cool the motor and lubricate the bearings.
    3) Pipe part: It is used to connect the electric pump to hoist it in the machine well and transport the water to the ground.
    Model
    Min.well diameter (mm)
    Capacity
    (m3/h)
    Head
    (m)
    Power
    (KW)
    150QJ
    150
    5-50
    13-350
    3-30
    200QJ
    200
    20-80
    22-500
    4-90
    225QJ
    225
    40-130
    14-360
    4-90
    250QJ
    250
    50-200
    15-600
    5.5-220
    300QJ
    300
    200-300
    20-240
    18.5-220
    350QJ
    350
    360
    36-144
    55-220
    400QJ
    400
    370
    16-96
    25-140
    500QJ
    500
    550-900
    27-108
    63-250
    Quality SS316 SS304 Industrial Centrifugal Pumps 75kw Hydraulic Oil Submersible Pump for sale
