    Small Heavy Duty 3.6Mpa Gravel Sand Pump 50M Head Sand Suction

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : 6/4D-G
    Certification : ISO9001 CE
    Price : 1000 USD/SET
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 SET/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Small Heavy Duty 3.6Mpa Gravel Sand Pump 50M Head Sand Suction

    Africa River Small Mining Sand Suction Heavy Duty Centrifugal Pump For Dredger
    Design and products:
    The series of slurry pump product has rational structure, high efficiency, reliable operation, convenient maintenance and other advantages, and is widely used for conveying abrasive or corrosive slurry, especially clinker of power plants in electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors.
    The series of product has the following main technical characteristics:
    1. It uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate;
    2. It has wide runner, good anti-clogging performance, and excellent cavitation performance;
    3. It uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak;
    4. The reliability design greatly improves mean time between failures (MTBF) of complete machine;
    5. It uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the bearing operates at low temperature;
    6. Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special processing, they are used for seawater dusting, and seawater and salt mist electrochemical corrosion conditions;
    7. In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.

    2. Model Introduction:

    For example:10/8F-G

    10:Suction diameter(inch)

    8:Discharge diameter(inch)

    F:Base type

    G:Gravel pump

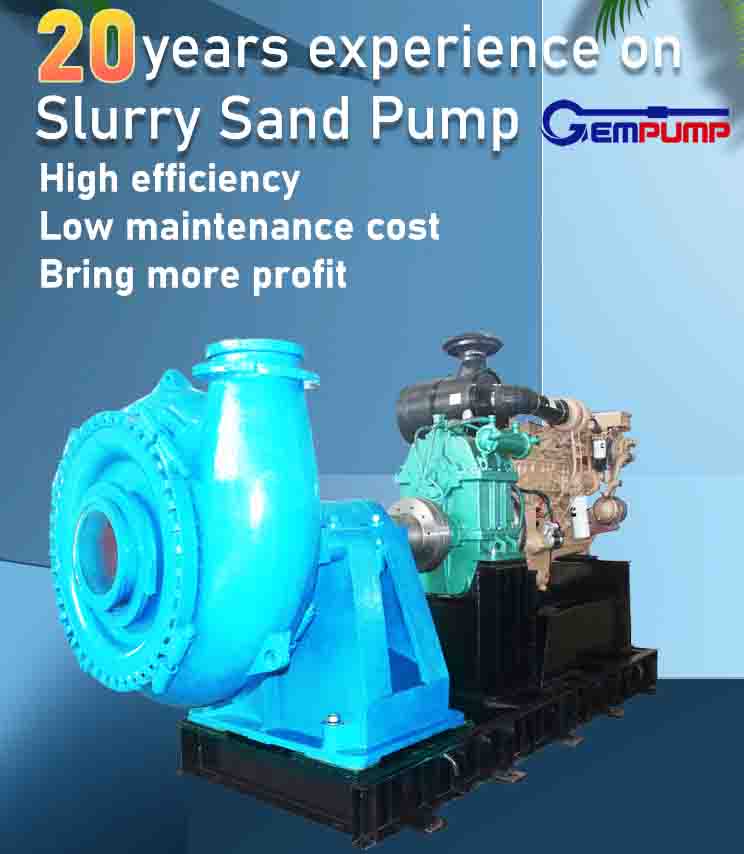

    DIESEL SLURRY PUMP-SET
    Model of Diesel pump setV65DPD05H (Q=405m3/h H=27m)
    Model Diesel EngineF6L912
    BrandDEUTZ air cooling diesel engine
    Rated Output65KW
    Speed2000rpm
    Induction systemNaturally aspirated
    Displacement5.655L
    Bore/stroke100*120mm
    Compression ratio17
    Direction of Rotation (facing cooling blower)Clockwise
    Cylinders6
    TypeVertical 4-stroke air-cooled direct injection
    Overall dimension1120×673×815
    Model PumpYSG150-27H
    Treated WaterSand water/River pump
    The Sand Maixmum diameter127mm
    TypeSingle-stage, slurry Pump,centrifugal pump
    Outflow405m3/h
    Head lift27m
    Speed980rpm
    Shaft power53kw
    Suction lift4.5m
    Inlet diameter200mm (8inch)
    Outlet diameter150mm (6inch)
    Impeller and expellerHigh Chrome Alloy, KmTBCr26
    Shaft45#steel
    CasingHT200
    Volute casingHigh Chrome Alloy, KmTBCr26
    Gearbox ModelFD200
    Ratio2:1
    Control SystemDisplay oil pressure,speed,oil temperature, key start.
    Standard EquipmentsDiesel engine: 1set
    Water pump: 1set
    Gearbox : 1set
    Common base with 8hour fuel tank:1 set
    Oil filter:1set
    Fuel filter:1set
    Air filter:1set
    Control system: 1set
    Accessary spare parts
    Technic file: 1set
    PackingPlywood case
    Payment TermsT/T30% deposit,balance before shipment
    Delivery Time15working days after received 30%deposit
    MOQ1SET
    The performance of all Sand Slurry pumps for reference
    Models
    Inlet /Outlet
    (mm)
    Capacity
    (m3/h)
    Head
    (m)
    Max Solid
    (mm)
    Max power
    (KW)
    6x4ND-G
    150/100
    39~250
    7~50
    82
    60
    8x6NE-G
    200/150
    133~576
    10~48
    127
    120
    10x8NF-G
    250/200
    216~930
    10~44
    178
    260
    10x8NS-GH
    250/200
    324~1091
    19~75
    180
    560
    12x10NG-G
    300/250
    360~1440
    11~58
    220
    600
    12x10NG-GH
    300/250
    612~2232
    28~77
    210
    600
    14x12NG-G
    350/300
    522~3268
    12~68
    241
    600
    16x14NG-G
    400/350
    1300~3000
    14~46
    254
    600
    16x14NG-GH
    400/350
    1300~3000
    24~75
    150
    1200
    18x16NG-G
    450/400
    1200~3600
    10~42
    254
    1200
    18x16NG-GH
    450/400
    1520~4320
    16~70
    254
    2000
