    0.37KW Stainless Steel Centrifugal Pump Vertical Type 2M Lift

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : CDL2-2
    Certification : ISO9001 CE
    Price : 1000 USD/SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 SET/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    0.37KW Stainless Steel Centrifugal Pump Vertical Type 2M Lift

    CDL / CDLF Vertical Multistage Centrifugal Pump High Pressure Stainless Steel Pump


    CDL/CDLF Vertical Pump Technical Description
    CDL/ CDLF is a kind of vertical non-self priming multistage centrifugal pump, which is driven by a standard electric motor. Thc motor output shaft directly connects with the pump shaft through a coupling. The pressure-resistant cylinder and flow passage components arefixed between pump head and inlet & outlet section with stay bolts. The inlet and outlet are located at the pump bottom at the same plane. This kind of pump can be equipped with an intelligent protector to effectively prevent it from dry-running, out-of-phase and overload.
    Centrifugal Hight Pressure Stainless Steel Pump Application
    It can be used to convey various medium from tap watert to industrial liquid at different temperature and
    with different flow rate and pressure.
    CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.
    ● Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.
    ● Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system .
    ● Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali. ● Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool. Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

    Multistage Vertial Centrifugal Pump Operation Conditions

    1) Clean, non-flammable and non-explosive liquid containing no solid granules and fibers.

    2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃

    3) Ambient temperature: up to +40℃

    4) Altitude:up to 1000m

    5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.

    6) PH 5-8

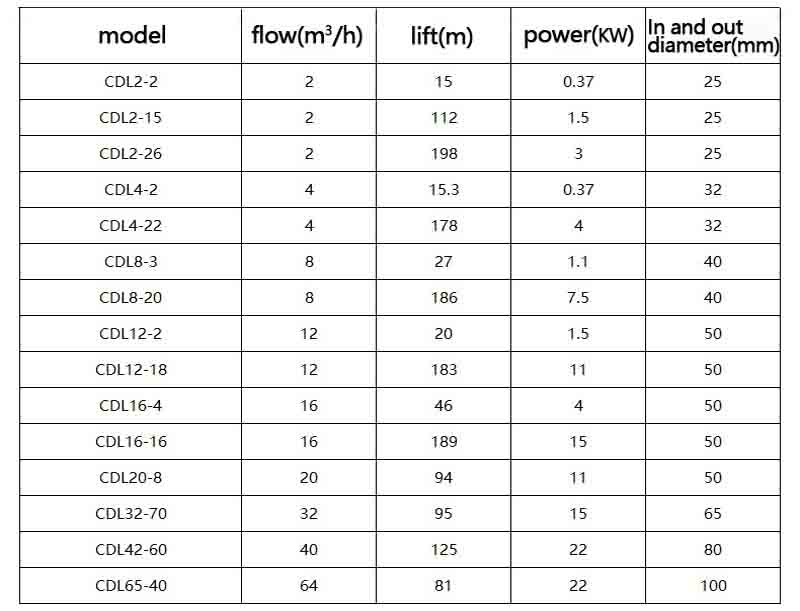

    CDLF Vertical Stainless Steel Pump Model List
