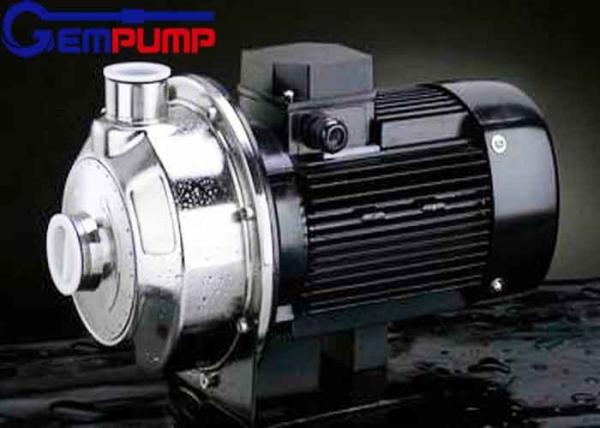

    CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : MS100
    Certification : ISO9001 CE
    Price : 1000 USD/SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 SET/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    CNP MS100 Horizontal Centrifugal Booster Pump Single Stage Lightweight

    CNP MS100 Light Stainless Steel Horizontal Single-Stage Centrifugal Booster Water Pump


    CNP MS100 Light Centrifugal Pump Performance Pange:

    Headup to 60m
    Flowup to 132m3/h
    Powerup to 30Hp
    Suction Size50 to 100mm
    Delivery Size32 to 80mm

    CNP MS100 Booster Water Pump Operating Limits:


    Max.Working Pressure10Mpa(10 bar)
    Ambient TemperatureFrom-15 °C to +40 °C
    Liquid TemperatureForm -20°C to +110 °C

    MS100 Horizontal Single-Stage Water Pump Technical Features:


    MS100 series stainless steel centrifugal pumps,produced by advanced stamping and welding technology,with its exchangeable components,stable quality,small size,light weight,aluminum alloy cold-extruding-shaped motor casing rational structure,beautiful appearance and safe use.


    The pump made by stainless steel SU304 or 316L and composed of pump body,impeller,rear cover,seal ring etc.It has features of good oxidation-resisting performance,strong corrosion-resisting to oxidative acid(e.g.nitric acid)and has some corrosion-resistance to alkaline solution and most of organic acids and inorganic acids.The shaft of centrifugal pumps made of 304 and 316L,different kinds of mechanical seal are optional.


    Standard:EN733(DIN24255)or GB5662


    Materials:Stainless Steel SUS304 or SUS316L for pump case,impeller and shaft.


    Fields of application:The pumps are suitable of transporting clean media which are non-aggressive to stainless steelSUS304 or SUS316 .


    Water Supply Systems

    Pressure Boiler Water Feeding

    Pure Water Treating Systems

    Pharmaceutical,Food and Regining Chemical Industries.

    Washing and Sprinking

    MS100 Centrifugal Pump Model

    Model
    Driving Motor
    Q(l/min)
    40
    60
    80
    100
    140
    160
    (kw)
    (hp)
    Q(m3h)
    2.4
    3.6
    4.8
    6
    8.4
    9.6
    MS100/0.55KW
    0.55
    0.75
    H(m)
    17.8
    16.7
    15.4
    14
    9.9
    MS100/1.1KW
    1.1
    1.5
    27.4
    26.3
    25
    23.4
    19.5
    16.7

    FAQ
    Q1: How can I get a price quote?
    Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
    Q2:May I get a cheaper price?
    Answer: A workable discount will be given if there’s a large quantity.

    Q3:Is your price included freight?
    Answer: Our usual price is based on FOB Shijiazhuang.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.

    Q4:Is OEM acceptable?
    Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.

    Q5:What’s your quality guarantee?
    Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.

    Q6:How long is your warranty?
    Answer: Our Warranty is ONE year
