    7.5HP Gasoline CQB Mag Drive Centrifugal Pump 2m-50m Head

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : CQB32-20-125
    Certification : ISO9001 CE
    Price : 1000 USD/SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 SET/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

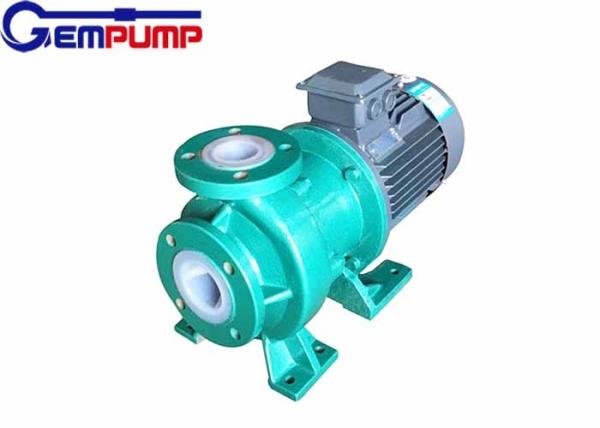

    7.5HP Gasoline CQB Mag Drive Centrifugal Pump 2m-50m Head

    7.5 Hp Gasoline Sea Chemical Cqb Magnetic Drive Centrifugal Water Pump


    Magnetic Drive Pump Description:


    Product classification:CQB horizontal acid corrosivon resistant magnetic drive circulation pump.


    CQB magnetic drive centrifugal pump (CQB magnetic pump). When the outside magnet steel of magnetic drive rotates, the magnetic line of force goes through the gap and spacer sleeve to work on the inside magnet steel driving the pump shaft rotating in step with the motor and transferring torque without contact. The liquid at the drive input end of pump shaft is fully confined inside the spacer sleeve without any dynamic seal, thus avoiding any liquid dripping, leak and spill which is a frequent problem in petrochemical industry. This pump, suitable for conveying toxic, harmful, flammable, explosive and precious liquids, is an ideal pump for factory buildings free from leakage and pollution.


    Application field:


    Electroplating wastewater, acid cleaning and polishing, pharmaceutical pesticide, fine chemical industry, iron and steel metallurgy

    Suitable substances: any concentration of acid, alkali, organic solvents.


    Flow:0.6m3/h-100m3/h Head:2m-50m.

    Power:0.025kw-18.5kw.

    Can be configured according to actual working conditions!

    CQB chemical pump for caustic soda.

    Fluorinated ethylene propylene or FEP is a copolymer of hexafluoropropylene and tetrafluoroethylene. It differs from the polytetrafluoroethylene resins in that it is melt-processable using conventional injection molding and screw extrusion techniques.



    NO.TypeFlow (m³/h)Head (m)EnmcenoyNPSHImport*exportSpeedPowerWelght
    1CQB16-12-50F0.628%9m16mm×12mm2900r/min0.025KW5KG
    2CQB15-15-65F0.83.216%6m15mm×15mm2900r/min0.18KW7KG
    3CQB20-15-75F1.6722%6m20mm×15mm2900r/min0.18KW8KG
    4CQB25-20-100F110.525%6m25mm×20mm2900r/min0.37KW12KG
    2.510.528%
    5CQB32-20-110F413.530%6m32mm×20mm2900r/min0.55KW18KG
    5.51335%
    6CQB40-25-120F6.31542%5m40mm×25mm2900r/min0.75KW35KG
    81242%
    7CQB40-40-100F61143%5m40mm×40mm2900r/min0.55KW20KG
    8945%
    8CQB40-40-125F6.517.542%3.7m40mm×40mm2900r/min1.1KW40KG
    91640%
    9CQB40-25-160F53345%3.5m40mm×25mm2900r/min3KW72KG
    6.33250%
    92957%
    10CQB05-32-125F72228%35m50mm×32mm2900r/min1.5KW45KG
    122042%
    151946%
    11CQB50-32-160F72828%3.5m50mm×32mm2900r/min4KW80KG
    12.53250%
    152957%
