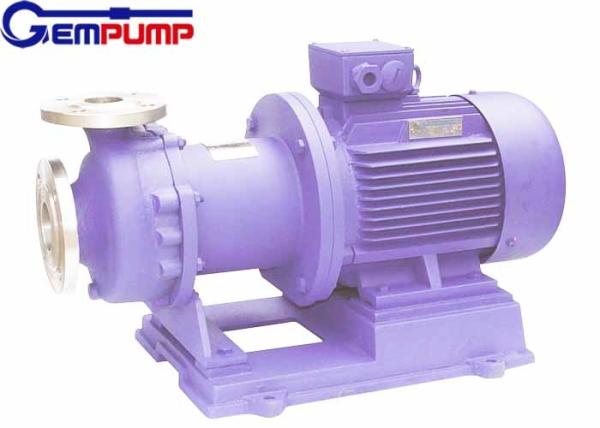

No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump

    Buy cheap No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump from wholesalers

    Buy cheap No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump from wholesalers
    • Buy cheap No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump from wholesalers
    • Buy cheap No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump from wholesalers
    • Buy cheap No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump from wholesalers
    • Buy cheap No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump from wholesalers

    No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : CQB80-65-160
    Certification : ISO9001 CE
    Price : 1000 USD/SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 SET/Month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    No Leakage CQB-G High Temperature Circulating Pump SS304 Acid Transfer Pump

    High Temperature Circulating Pump Acid Transfer Pump No-Leakage Magnetic Pump


    CQB Stainless Steel Magnetic Pump Introduction:


    1. CQB CQB-G high temperature circulating pump acid transfer pump no-leakage magnetic pump adopts the magnetism transmission principle and cooling installation to transport corrosive medium of high temperature without leakage.
    2. It is with merits of compact structure, good corrosion resistance ability, reliable running and no leakage.
    3. The magnetic pump is used to trasnfer acid, lye, oil, rare and precious liquid, venom, volatile, etc.
    4. Widely used in petroleum chemical industry, pharmacy, smelt, electroplate, environmental protection, food industry, film processing, water treatment, etc.

    Flow: 3.2-100m3/h head:20-80m power: 0.75~75KW


    CQB magnetic pump characteristics


    1. Good anti-corrosion performance
    The wet part is made of stainless steel, high-density carbon, high-purity oxidized AL ceramics, filled by PVDF, in an anti-leak seal structure.
    2. High-efficiency/energy-saving design
    High-efficiency 50-55%, energy-saving design.
    3. Easy maintenance.


    Technical parameters:


    TypeDiameter (mm)flow (m3/h)head (m)(npsh)r(m)Rotation speed (r/min)Motor power (kw)
    inletoutlet
    cqb32-20-12532203.2205.029001.1
    cqb32-20-160323.51.5
    cqb40-25-10540256.312.56.01.1
    cqb40-25-125206.02.2
    cqb40-25-160323.53
    cqb40-25-200503.55.5
    cqb50-40-85504012.583.51.1
    cqb50-32-1053212.53.52.2
    cqb50-32-125203.53
    cqb50-32-160323.54
    cqb50-32-200503.57.5
    cqb50-32-250803.515
    cqb65-50-125655025204.05.5
    cqb65-50-160324.07.5
    cqb65-40-20040504.015
    cqb65-40-250804.022
    cqb80-65-125806550204.07.5
    cqb80-65-160324.015
    cqb80-50-20050504.018.5
    cqb80-50-250804.037
    cqb100-80-12510080100204.015
    cqb100-80-160324.022
    cqb100-65-20065504.037
    cqb100-65-250804.055

    Model significance:


    Examples: CQB50-32-160
    CQ ------- magnetic drive pump
    B ------- current component materials for metal
    50 ------- suction port diameter (mm)
    32 ------- row outlet diameter (mm)
    160 ------- impeller nominal diameter (mm)


    FAQ


    1.Q: Are your company is trading company or manufacture?

    A: Gempump is a large professional manufacture for more than 10 years in china.

    2. Q: What's your factory workshops?

    A: Our factory produce include casting,mechanical process,lathe process,heat treatment,assembly,and test,etc. Warmly welcome to visit & test our factory any time.

    3. Q: How about your pumps price?

    A: Our price is factory price,and insist high quality for long-term cooperation.

    4. Q: How to do if the pump or parts have operation problem within your warranty?

    A: Tell me details timely,and show me pictures,we will send you solution at once without any hesitation.

    5. Q: We don't know which pump model we need,can u help us?

    A: Yes,pls tell me your detail requirement,include liquid,flow rate,head,etc.and our engineers team will calculate & select most suitable pump model for u,offer pump solution for u.
