    40ZJQ8-12-2.2 Waste Sewage Sludge Pumps Vertical Submersible Sand Gold Mining Slurry Pump

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : 40ZJQ8-12-2.2
    Certification : ISO9001,CE
    Price : 1000USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 sets pumps per month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    40ZJQ8-12-2.2 Waste Sewage Sludge Pumps Vertical Submersible Sand Gold Mining Slurry Pump

    40ZJQ8-12-2.2 Waste Sewage Sludge Pumps Vertical Submersible Sand Gold Mining Slurry Pump

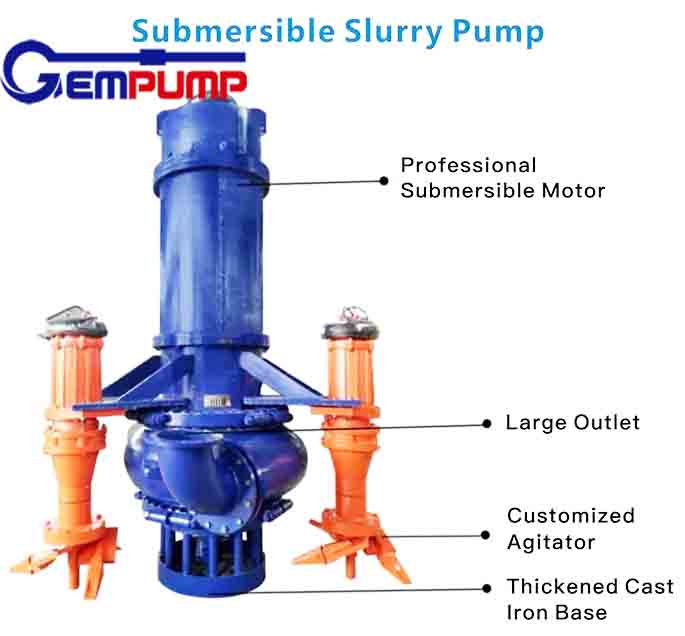

    ZJQ submersible slurry pump has been comprehensively optimized and innovatively designed in the aspects of hydraulic model, sealing technology, mechanical structure, protection control, etc. This product has a simple structure, convenient installation, safe and reliable use, and long life. Submersible pumps do not need to build complex ground pump rooms and fixtures underwater, no noise and vibration, and the site is cleaner. The submersible sewage pump is a submersible sewage pump that can tear, cut and discharge the long fibers, bags, belts, grass, cloth and other materials in the sewage, and then discharge smoothly. It is especially suitable for conveying liquids containing hard solids and fibrous materials and special Dirty, sticky, slippery liquid.


    Model
    Capacity
    ( m3/h )
    Head
    ( m )
    Motor Power
    ( kw )
    Speed Rotation
    ( r/min )
    40ZJQ8-12-2.2
    8
    12
    2.2
    1400
    40ZJQ15-12-3
    15
    12
    3
    1400
    50ZJQ25-15-4
    25
    15
    4
    1400
    50ZJQ17-10-4
    17
    10
    4
    1400
    65ZJQ71-25-11
    71
    25
    11
    1400
    65ZJQ47-34-11
    47
    34
    11
    1400
    80ZJQB0-18-11
    80
    18
    11
    1400
    80ZJQ45-23-15
    45
    23
    15
    1400
    1OOZJQ214-32-45
    214
    32
    45
    1400
    100ZJQ293-24-45
    293
    24
    45
    1400
    150ZJQ635-40-155
    635
    40
    155
    980
    200ZJQ396-50-185
    396
    50
    185
    980
    200ZJQ792-46-215
    792
    46
    215
    980

    1.ZJQ submersible dredge pump

    a) Pumping tailing slurry for industrial and mining organizations;

    b) Sucking silt in sedimentation basin;

    c) Pumping silty sand or fine sand for seashore or port;

    d) Pumping powdery iron ore for foreign countries, etc;

    e) Deliver a solid particles of mud, larger pulp, coal slurry, sandstone;

    f) Sucking from all kinds of fly ash power plant, coal slime


    2.Advantages of submersible sand pump to transfer contact water

    a) High productivity--Our pumps are designed to pump fluids containing a high percentage of solids(maximum weight concentration of the ash can reach 45% and maximum weight concentration of the slag can reach 60%).

    b) So long service life--Wear parts of agitator pump are all constructed with abrasion resistant materials - hard chromium alloy, so pumps have better stability & longer service life.

    c) Various protective--The motor adopts various protective such as overheat protection, water -inlet detecting projection, and can be operated safely for a long term in challenging working conditions.

    d) Mechanical seal--Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, thus high suction efficiency can be ensured.


    3.Features of our submersible sand pump

    a) Wear parts are all constructed with abrasion resistant materials - chromium alloy, so pumps have better stability & longer service life.

    b) Unique mechanical seal device can prevent the electric motor from high pressure water and impurities, thus high suction efficiency can be ensured.

    c) Easy installation, operation and cost saving, since no additional vacuum pump or pump house is needed.

    d) In addition to the main impeller, a pair of agitation impeller is equipped to help break and mix the sludge.

    e) Professional technology support is provided during the whole process of the usage and maintenance.


    4.Introduction of our submersible sand pump

    As a manufacturer of submersible agitator slurry pump, “FINE” design it for handling slurry, mud, silt or sand. “FINE” submersible Circle Pump is an excellent combination of heavy duty wear resistant materials, variable input drive power with wide enclosed impeller provides high flow capacities with sufficient power to pump heavy slurries, sand and gravel.

    Oil filled bearing housing is good for deep water applications.

    The 27% chrome white iron agitator assists in the pumping of slurries by breaking up large particles and agitating high concentrations of solids .


    5.Service conditions of submersible sand pump

    a)Power supply: generator or industry electric power, and the capacity of the substation transformator is two to three times of the rated capacity of the motor.

    b)Temperature of the medium: The temperature of the medium cannot exceed 60Celsius, and the medium does not contain inflammable or explosive gases.

    c)Max weight density of the solid particle: The maximum weight concentration of the solid particles in the medium: the maximum weight concentration of the ash is 45% and the maximum weight concentration of the slag is 60%.

    d)The unit works in the medium vertically, and the working status is continuous.


    Why choose Gempump China?

    Gempump China has more than 10 years pump experience in China,can produce slurry pump,chemical pump,clean water pumps,wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Gempump China has a complete after-sales service system to ensure that customers have no worries about using any product.


    FAQ:

    Q: How can I make order online?

    A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.

    Q: Do you have MOQ limit?

    A: The MOQ is 1 set.

    Q: Which payments are acceptable?

    A: T/T, L/C, Western Union, Paypal.

    Q: Which shipping terms are available?

    A: By sea, air, Express

    Q: How about the delivery time?

    A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.

    Q: What guarantee do you have?
    A: The product warranty period is 1 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
    Q: Can I purchase parts separately?
    A: Yes, all pump spare parts can be purchased separately.
