    Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical

    Ask Lasest Price
    Brand Name : Gempump
    Model Number : CQB80-65-125
    Certification : ISO9001,CE
    Price : 1000 USD/Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000Sets Per Months
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    Ss 304l 316l 347h Ansi Flanged Mag Drive Centrifugal Pump For Chemical

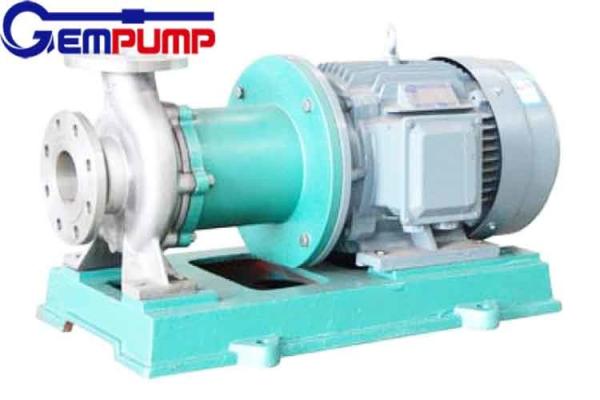

    SS-304L 316L 347H ANSI Flanged Horizontal Centrifugal MAG Drive Process Pump For Chemical

    Horizontal Centrifugal Magnetic Pump Products overview:

    CQ type stainless stell magnetic drive circulation centrifugal oil pump can be divided into two broad categories, stainless steel and engineering plastic, is currently the most widely used pump without leakage.Has a simple structure, beautiful appearance, small size, low noise, reliable operation, convenient to use and repair etc.

    CQ type stainless stell magnetic drive circulation centrifugal oil pump is the application of the working principle of magnetic couplings in centrifugal pump of the new product, reasonable design, advanced technology, with fully sealed, without leakage and corrosion, the characteristics of its performance reach the advanced level of similar foreign products.

    Magnetic pump with corrosion resistant, high strength engineering plastic, corundum ceramic, as a manufacturing material such as stainless steel, so it has good corrosion resistance, and can make the medium to be delivered from pollution.

    Except normal GMP type, also have GMP-H High temperature type (-30℃ to 280℃)

    1. Motor bracket with heat dissipation design.

    2. Use Rare earth SmCo magnet.

    3. Use Anti-High temperature graphite gasket.

    GMP-L Low temperature type (-80℃ to 150℃)

    1. Motor bracket with Nitrogen fill design, Prevent moisture from freezing.

    2. Use Rare earth Neodymium magnet.

    3. Use Anti-low temperature graphite gasket.

    Stainless steel Magnetic pump Advantages

    1. Magnetic pump no mechanical seal, no leaking.
    2. Fit for solvent application, most of plastic pump couldn’t do these application.
    3. With EX/ATEX motor and grounding, fit for some explosive application.
    4. Stainless steel pumpbody fit for high or low temp application (-80℃ to 280℃)
    Performance data:
    Pump type
    GMP
    50HZ
    60HZ
    Max.Head (m)
    61
    88
    Max. Capacity (L/min)
    1345
    1328
    Temperature range
    -80℃~280℃
    Max.S.G
    2
    Max. Viscocity (cps)
    330
    Design Pressure (Mpa)
    1.6
    Flange type
    ANSI/DIN/JIS
    Impeller type
    Closed
    Motor type
    Standard / EX/ATEX motor

    Product application:

    CQB series stainless steel magnetic pump is suitable for petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, film and television printing, water treatment and other industries. It can transport flammable, explosive, volatile, toxic, rare and precious liquids and various corrosive liquids.
    Product parameter table
    Model
    Caliber(mm)
    Flow
    Head
    Motor Power
    Voltage
    Material
    import
    outlet
    (m3/h)
    (m)
    (kW)
    (V)
    14CQ-5
    14
    10
    1.2
    5
    0.12
    220/380
    stainless steel
    16CQ-8
    16
    12
    1.8
    8
    0.18
    220/380
    20CQ-12
    20
    12
    3
    12
    0.37
    220/380
    25CQ-15
    25
    20
    5.4
    15
    1.1
    380
    32CQ-15
    32
    25
    6.5
    15
    1.1
    380
    32CQ-25
    32
    25
    4.8
    25
    1.1
    380
    40CQ-20
    40
    32
    10
    20
    2.2
    380
    40CQ-32
    40
    32
    11.5
    32
    4
    380
    50CQ-25
    50
    40
    14.4
    25
    4
    380
    50CQ-32
    50
    40
    13.2
    32
    4
    380
    50CQ-50
    50
    32
    7.8
    50
    5.5
    380
    65CQ-25
    65
    50
    16.8
    25
    5.5
    380
    65CQ-32
    65
    50
    25
    32
    7.5
    380
    80CQ-32
    80
    65
    50
    32
    11
    380
    50CQ-50
    80
    65
    50
    50
    15
    380
    100CQ-32
    100
    80
    60
    32
    15
    380
    100CQ-50
    100
    80
    60
    50
    18.5
    380

    FAQ:

    Q: Which payments are acceptable?

    A: T/T, L/C, Western Union, Paypal.

    Q: Which shipping terms are available?

    A: By sea, By air,By DHL Express .

    Q: How about the delivery time?

    A: Delivery time is normally 3-7 working days after confirm the Payment. Depends on your quantity.

    Q: What guarantee do you have?
    A: The Horizontal Magnetic Drive Centrifugal Pump product warranty period is 1 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
    Q: Can I purchase parts separately?
    A: Yes, all pump spare parts can be purchased separately.
